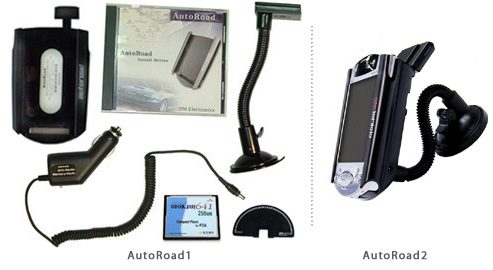

AutoRoad(GPS Receiver)   AutoRoad GPS Technical Specification Antenna Type Active Antenna (Ceramic Patch) Satellite Measure Used 12-channel parallel, automatic selection Memory Card Compact Flash cards Hot Start 8 Seconds (typical) Warm Start 48 Seconds (typical) Cold Start 60 Seconds (typical) Re-acquisition Time 3 Seconds (typical) Accuracy of Position Fix 25 meters, CEP without SA Accuracy of Velocity 0.1 meters/second without SA Interface iPAQ Option Pack Interface Update Rate Once per second Dynamic conditions   - Altitude   - Velocity   - Jerk   - Acceleration 18,000 meters (60,000 feet) max. 514 meters/second max. 20 meters/second3 max. 4G max. Output Message NMEA ; GPGGA, GPGSA, GPRMC, and GPGSV. Power 3.3V DC from the iPAQ’s internal Lithium Polymer rechargeable battery External Power 12.0 ~ 24.0V DC in-car adaptor iPAQ Battery Life 1.5 - 2.2 hours when typically running with full backlight and GPS enable iPAQ Requirements iPAQ H3600, H3700, H3800, H3900 or H5400 series 800Kb for application software Typically 12Mb free for map data  - For H3600 series units : Pocket PC ROM build 1.77 or   height  - For H3700 & H3800 series units : Pocket PC 2002, all   ROM builds Certification      top Antenna Element electrical Specifications Item Specification Center Frequency 1575.42 MHz ±1.023 MHz Polarization R.H.C.P. Gain @ Zenith @ +5dBi typical, -1dBi typical Axial Ratio 3dB max Impedance 50 ohms     top Low Noise Amplifier Electrical Specifications Item Specification Frequency 1575.42 MHz ±1.023 MHz VSWR Less than 2.0 Polarization R.H.C.P Impedance 50ohms LNA Gain 20dB/ 28dB/32dB (±2dB) Noise Figure 2.0dB (max) Band Attenuation 20dB min @Fo ±50 MHz Axial Ratio 3dB max Voltage DC +3V/DC +5V ( ±10% ) Current 20mA (max) top Mechanical Specifications Item Specification Weight 90 g Height 9.1mm Width 26mm x 26mm Cable RG-174 5m, 1.5D2v 5m Connector SMB top Environmental Specifications Item Specification Operating Temp. -40℃ ∼ +85℃ Storage Temp. -40℃ ∼ +85℃ top ---- 판매처 ---- http://www.navimall.net
